How to Enable Redundancy with Microsoft Teams Call Recording

Note: This knowledgebase article applies only to Atmos’ Cloud-based (bot) recording of Microsoft Teams

Many Microsoft Teams call recording scenarios require redundancy to meet regulatory compliance, especially in financial, government, and medical markets. Atmos achieves redundancy using -two different methods outlined in this document. This article’s focus is redundancy, and it’s essential to understand the difference between redundancy, resilience, and high availability. Sometimes these terms are interchanged, but they have distinct meanings.

Redundancy

Redundancy refers to the purposeful duplication of a system’s components resulting in higher system dependability.

Resilience

Resilience defines a given system’s power to recover from software and component faults and the degree of service persistence during fault events.

High Availability

High availability (HA) is a trait of a system or network of systems designed to ensure a standard of performance, especially regarding system uptime, for above-average time periods.

Microsoft Teams Call Recording Redundancy In Atmos

There are two methods for enabling redundancy in Atmos’ Teams call recording scenarios.

N+1 Redundancy

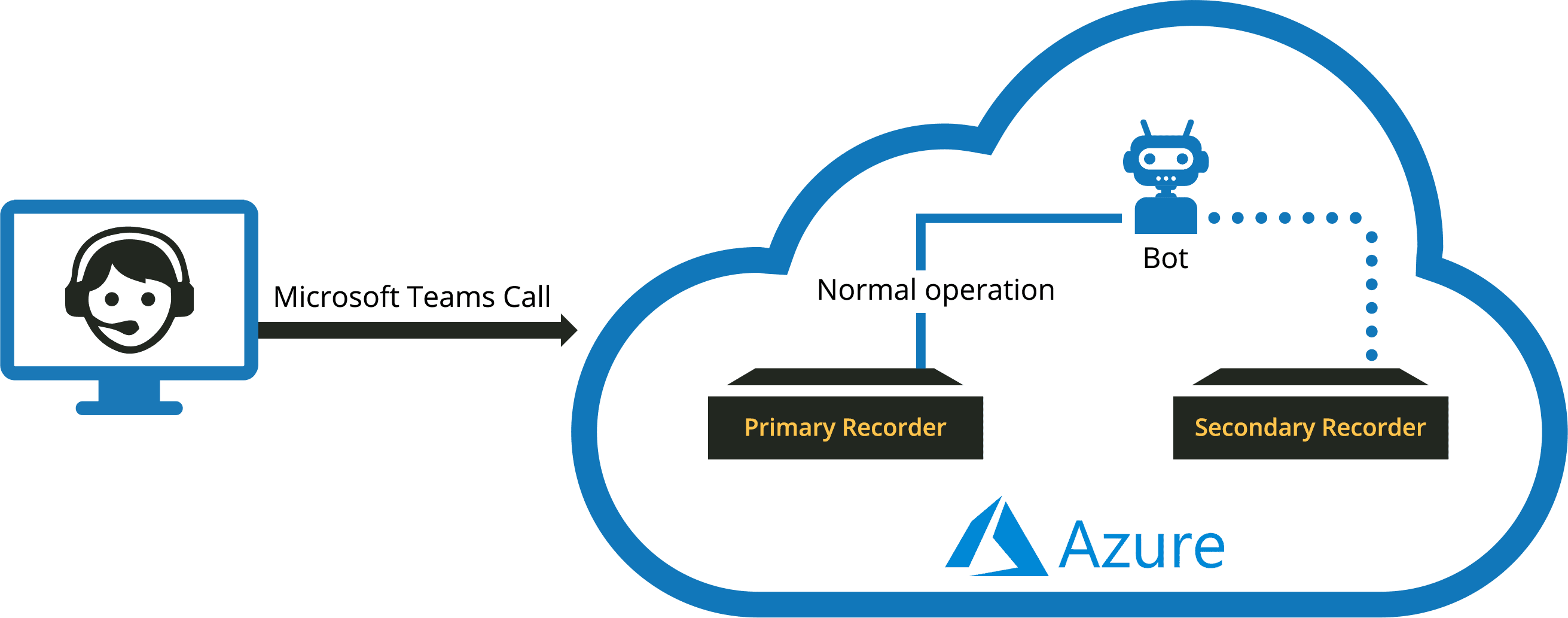

N+1, also known as active standby, deploys a single bot into the users Azure space to capture Teams calls to a recording server. In N+1, there are two recording servers, a default server and a standby server. When the bot detects a fault in the default server, it will automatically switch to the standby server. CallCabinet initializes this default redundancy in Atmos for a Microsoft Teams recording system. The only potential fault in this scenario is if the bot itself fails. While this is very uncommon, the 2N redundancy method can provide a degree of resilience if it is a concern.

Teams N+1 Redundancy

2N Redundancy

With 2N redundancy, two independent bots are deployed into the user’s space, each connected to a dedicated recording server. Both bots feed call audio to their servers directly without any switching or interaction in the event of a fault. The benefit of this method is independent redundancy, which is a somewhat more resilient redundancy scheme. Still, it’s important to mention that it requires twice the amount of storage space since two recordings are always made of every call.

2N Redundancy



If you have any additional questions, the CallCabinet support team will be happy to assist you with the configuration of these methods for your Atmos deployment.
